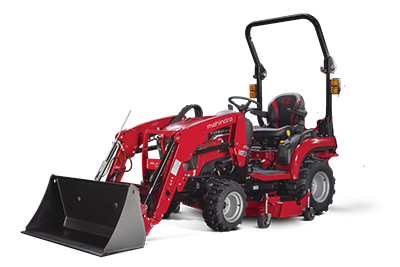

LOADER MODEL

Maximum Lift Height [in]

73.2

Dig Depth [in]

3.14

Lift Capacity

794

ENGINE

Type

Naturally Aspirated, Indirect Injection, Water Cooled Diesel

Engine HP {kW} @ RPM

22.8 (17) @ 2900

Displacement [in³ (cc)]

67.2 (1102)

Number of Cylinders

3

Fuel Tank [gal (L)]

6.6 (25)

DRIVE TRAIN

Transmission

HST - 2 Ranges

Number of Speeds

Infinite

Max Speed

7.3

Brakes Type

Single Pedal

PTO

Type

Independent Wet Clutch

Rear PTO RPM

540

Mid PTO RPM

2500 @ 2837

PTO HP (kW)

19.2 (14.3)

HYDRAULICS

Type

Open Center with Position Control

Pump Output [gallons per minute]

7.4

3-pt Linkage

CAT I

Total pump output, steering (GPM)

3.8

Lift Capacity [lb] 24-inch from pin

771

ELECTRICAL

Battery

12.6V, 650 CCA

Alternator

12V, 55 A

DIMENSIONS

Overall Length [in (mm)]

100.4 (2550)

Overall Width [in (mm)]

46.3 (1177)

Turning Radius [ft (m)]

7.2 (2.2)

Weight [lb]

1620

WHEELS & TIRES

IND [Front/Rear]

18 x 8.5-10 / 26 x 12-12

TURF [Front/Rear]

16 x 7.5-10 / 24 x 12-12
