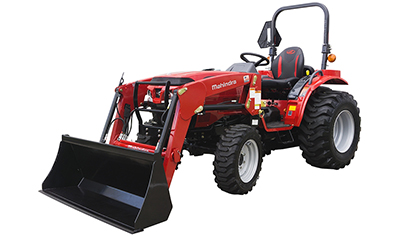

LOADER MODEL

1626L

Standard Bucket Size [in]

62

Maximum Lift Height [in]

86

Dig Depth [in]

4.5

Lift Capacity to Full Height at Pivot Pin [lbs]

1560

Breakout Force [lbs]

2795

Shipping Weight [lbs}

774

ENGINE

Type

Four-stroke, Natually Aspirated, Indirect Injection, Water Cooled Diesel Engine

Engine HP {kW} @ RPM

25.9 (19.1) @ 2500

Displacement [in3 (cc)]

80.4 (1318)

Number of Cylinders

3

Fuel Tank [gal (L)]

7.1 (27)

DRIVE TRAIN

Transmission

HST - 3 Ranges

Number of Speeds

Infinite

Clutch

Dry-Single

Brakes

Wet Disc

PTO

Type

Live

Rear PTO RPM

540 @ 2376

Mid PTO RPM

2000 (Opt.) @ 2526

PTO HP (kW)

19 (14.2)

HYDRAULICS

Type

Open Center

Implement Pump Output [gpm (L/min)]

7.5 (28.5)

Maximum Total Flow [gpm (L/min)]

10.8 (40.7)

3-Point Hitch

CAT I with Telescoping Stabilizers

Lift Capacity [lb (kg)]

2646 (1200)

ELECTRICAL

Battery

12 V, 540 CCA

Alternator

12 V, 50 A

DIMENSIONS

Overall Length [in (mm)]

121.3 (3081)

Overall Width [in (mm)]

63 (1600)

Overall Height [in (mm)]

81.5 (2070)

Wheelbase [in (mm)]

67.3 (1709)

Minimum Ground Clearance [in (mm)]

11.4 (289)

Turning Radius [ft (m)]

7.9 (2.4)

Weight [lb (kg)]

2459 (1115)

WHEELS & TIRES

AG [Front/Rear]

7 x 16 / 11.2 x 24

IND [Front/Rear]

27 x 8.5-15 / 15 x 19.5

TURF [Front/Rear]

25 x 8.5-14 / 16.6 x 16
