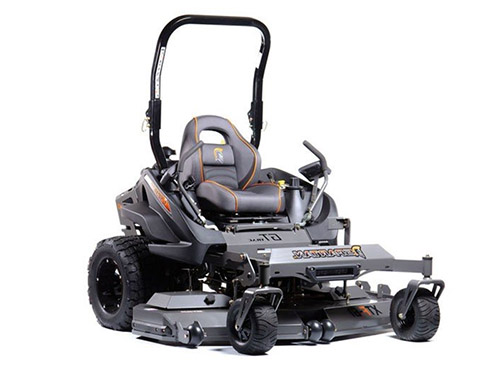

RZ HD Kawasaki FT730
> RETURN TO SEARCH RESULTS
The RZ now offers three series options, the RZ, RZ Pro and RZ HD. The RZ with 48” deck can maneuver through tight spaces with ease, and is an absolute beast of a machine for residential use. Upgrade to an RZ Pro or RZ HD for more deck size and engine options. The RZ Series is available in 48", 54" and 61" deck sizes.
ENGINE
| Engine Name |
Kawasaki FR730 24hp |
| Horsepower |
24HP |
| Fuel Capacity |
5 gal |
DRIVE LINE
| Hydraulic Drive |
Parker HTE 10cc wheel motors |
| Hydraulic Drive Torque |
Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb |
| Hydro Drive Maintenance |
1,000 hours between oil change |
| Drive Tires |
22x12-R10 Radial | 22x10-R10 Radial |
| Front Tires |
13x6.5-R6 Smooth Tread w/Optional Radial Upgrade |
| Wheels Type |
Aluminum |
| Speed (F/R) |
Forward: Up to 9MPH | Reverse: Up to 5MPH |
FEATURES
| Seat |
RZ HD Seat |
| Steering Levers |
Adjustable up and down |
| Control Panel LCD Display |
Engine hour meter, Mower deck hour meter, Tachomter, Low level warning volt meter,
Time between oil change countdown, Fault codes |
| Ignition |
Keyless, enter personal code to start |
| Auxiliary Power |
12 Volt outlet next to phone holder |
Control Panel LED
Warning Indicators |
Parking brake set, Drive levers, Operator present,
PTO, Low/Hi battery volts, Low oil PSI |
CUTTING DECK
| Deck Size |
61" |
| Deck Depth |
5" Deep, Full floating deck |
| Deck Lift |
Foot operated with shock assist. |
| Deck Adjustment |
Change-on-the-go Precision Deck Height Dial |
| Cut Height |
1" to 4.25" with 15 Cut Heights in Between |
| Blade Spindles |
Cast aluminum, no maintenance/sealed double bearing |
| Parking Brake |
Foot Operated |
| Frame |
1.5"x3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame |
MEASUREMENTS
| Width |
61" Deck: 62.5" Wide |
| Weight |
61": 963lbs |
| Length |
84" |
| Height |
75" with ROPS up (54" with Folding ROPS down) |
WARRANTY
| Engine Warranty |
3 Years |
| Full Warranty |
3 Years or 400 Hours, 120 Day Belt Warranty |
| Deck Warranty |
Lifetime on the leading edge. See full warranty for restrictions |
| Hydraulic Drive Warranty |
3 Years or 750 Hours. See full warranty for restrictions |
| Control Panel Warranty |
3 Years |
