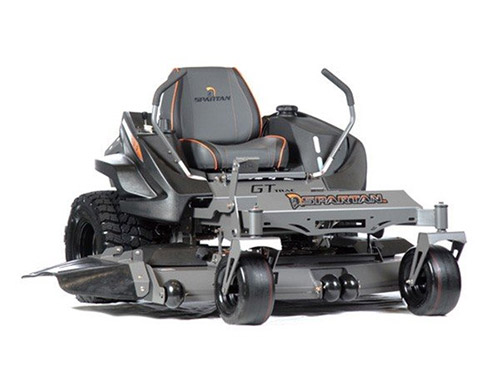

Spartan RZ-PRO Briggs Commercial 25hp


RZ-PRO uses a new Tuff Torq 450 transmission with steel gears, a 10cc pump, charge pump and serviceable filter. It also has an exclusive seat shock producing a smoother ride at a dramatically reduced price. High-end 22" radial tires improve traction both on level ground and on inclines.


 Engine Name  Briggs and Stratton Commercial
 Horsepower  25HP
 Fuel Capacity  5 gal


 Hydraulic Drive  Tuff Torq 450 Series
 Hydraulic Drive Torque  Continuous: 1,425 in/lb | Max Torque: 3,540 in/lb
 Hydro Drive Maintenance  500 hours between oil change
 Drive Tires  22x12-R10 Radial | 22x10-R10 Radial
 Front Tires  13x6.5-R6 Smooth Tread
 Wheels Type  Aluminum
 Speed (F/R)  Forward: Up to 8.5MPH | Reverse: Up to 5MPH


 Seat  GBR-7 Elastomer
 Steering Levers  Adjustable up and down
 Control Panel LCD  Display  Engine hour meter, Mower deck hour meter, Tachomter, Low level warning volt meter,
 Time between oil change countdown, Fault codes
 Ignition  Keyless, enter personal code to start
 Auxiliary Power  12 Volt outlet with Large Cup Holder
 Control Panel LED
 Warning Indicators
 Parking brake set, Drive levers, Operator present,
 PTO, Low/Hi battery volts, Low oil PSI


 Deck Size  54", 61"
 Deck Depth  5" Deep, Full floating deck
 Deck Lift  Foot operated with shock assist.
 Deck Adjustment  Precision Deck Height Pin plus locking Travel Height with Pin Adjusted Height Selection
 Cut Height  1" to 4.25" with 15 Cut Heights in Between
 Blade Spindles  Cast aluminum, no maintenance/sealed double bearing
 Parking Brake  Foot Operated
 Frame  1.5"x3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame


 Width  54" Deck: 55.5" Wide | 61" Deck: 62.5" Wide
 Weight  54": 793lbs | 61" - 827lbs
 Length  81"
 Height  46"


 Engine Warranty  3 Years
 Full Warranty  3 Years or 300 Hours, 120 Day Belt Warranty
 Deck Warranty  Lifetime on the leading edge. See full warranty for restrictions
 Hydraulic Drive Warranty  3 Years or 300 Hours. See full warranty for restrictions
 Control Panel Warranty  3 Years
